Product

Product profile
Metal Aviation Plug (Push-Pull Lock Version)
Metal Aviation Plug (Push-Pull Lock Version)
Metal Aviation Plug (Push-Pull Lock Version)
Contact Us
Metal Aviation Plug (Push-Pull Lock Version)

Specification

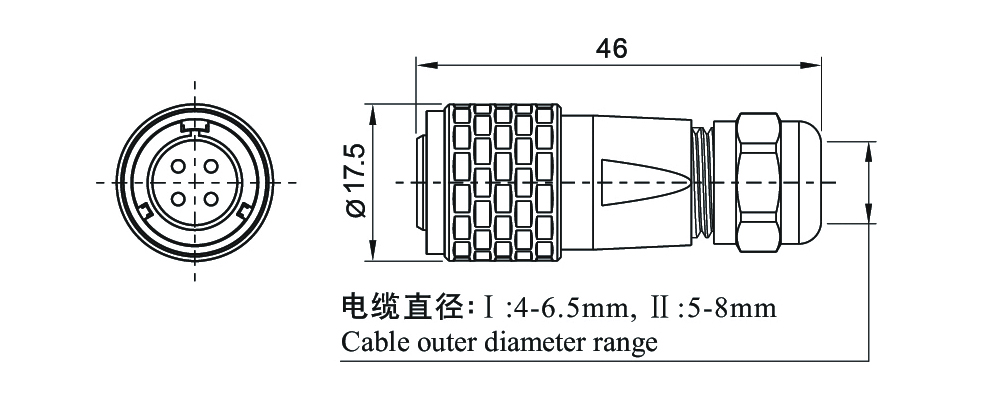

Outline installation dimensions

Technical parameters
Name

Metal Aviation Plug (Push-Pull Lock Version)

Couping

Push-pull

Shell Material
 Anodized aluminium
Insulator Material

PPS, max temperature 260 ℃

Contact Material

Brass with gold plating

Mating cycl

500   USB:1000

Temperature range

-40℃～+85℃； Date ：-20℃～+70℃

Insulation resistance

2000 MΩ

Transmission Speed

Cat 5: 100Mbps Cat 6: 100-1000Mbps


Back
