Product

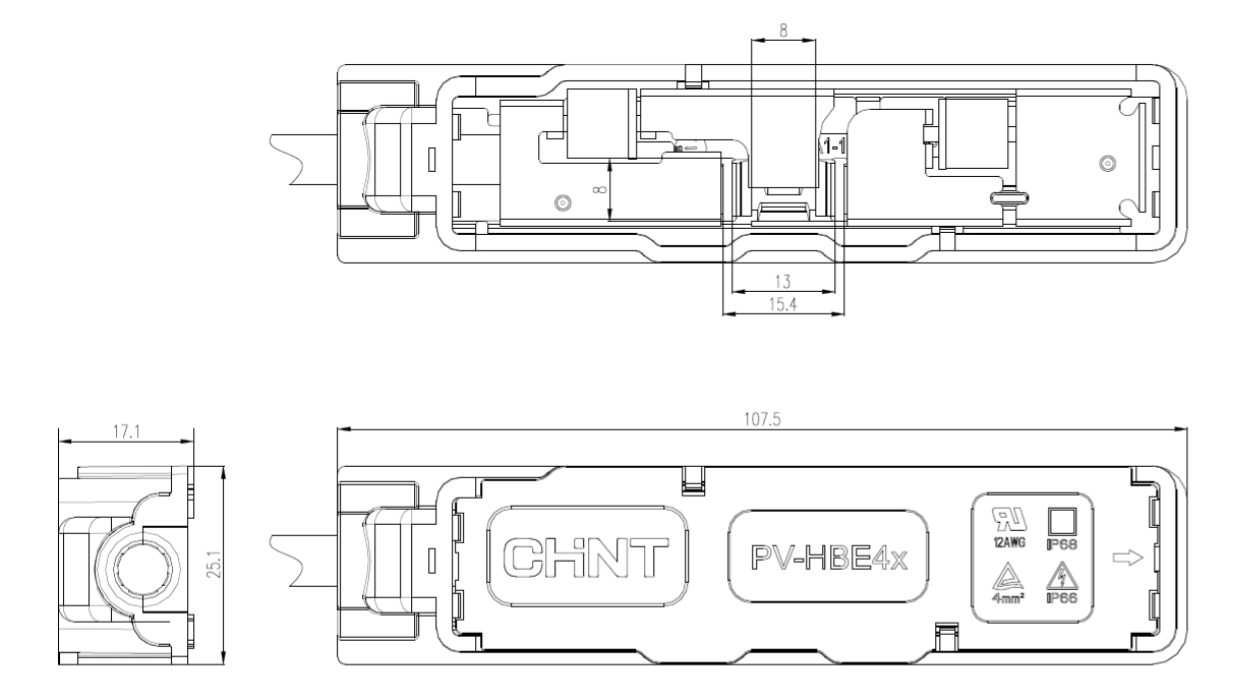

Outline installation dimensions
Technical parameters
Name:
PV-HBE4x
Temperature range:
-40℃~+85℃
rated voltage:
1500V
Rated current:
25A/30A
Protection grade:
IP66/IP68
Cable specification:
4-6mm²
Width of Tinning Ribbons:
≤8mm
Flame retardant grade:
UL94 5VA
