Amid intensifying competition in the photovoltaic industry, connectors act as the "capillaries" of power plants, where the reliability of their engineering plastics directly impacts the safe operation of the entire system. Harsh environments such as prolonged outdoor exposure, extreme temperature fluctuations, and chemical corrosion continuously test the durability limits of connector materials. Zhejiang Chint Xinhui's HCC40 PV connector is designed to address these challenges.
Developed by Zhejiang Chint Xinhui Solar Co., Ltd., the HCC40 PV connector breaks the industry's reliance on new engineering plastics from international chemical giants, successfully resolving the pain point of "insufficient reliability in PV connector material application." The product features a triple-insulation design (annular groove structure, seal fin structure, and internal sheath) to enhance electrical safety and reliability. It also offers excellent compatibility, enabling quick mating with mainstream products like MC4, and is suitable for PV module systems across all scenarios.
Robust Performance for Harsh Environments
Triple-insulation structure (annular groove, fin, internal sheath) ensures electrical safety and reliability
IP68 protection rating effectively resists rain, dust, and corrosion
Wide operating temperature range (-40℃ to +85℃) adapts to diverse climatic conditions
Highly Flexible Compatibility Design
Fully compatible with mainstream interfaces like MC4, enabling seamless integration with existing systems
High current-carrying capacity meets the demands of high-power modules

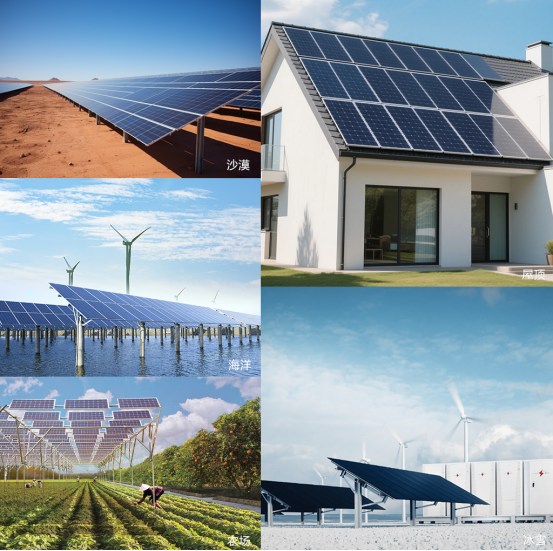

Suitable for all scenarios, from residential PV to large-scale ground-mounted power plants
Innovative Materials Break Through Industry Bottlenecks
The HCC40 connector adopts an innovative structural design rated for 1500V. It combines the application of innovative materials with high RTI (Relative Thermal Index) and high CTI (Comparative Tracking Index), breaking industry conventions to deliver high reliability, high current (45A) capacity, and worry-free electrical connections. Furthermore, the HCC40 excels in insulation performance and environmental adaptability, breaking the industry's pattern of relying solely on new engineering plastics from international chemical giants and effectively resolving the industry pain point of insufficient reliability in PV connector material application.
Awarded National-Level 2025 Green Technology Innovation Case
After a rigorous selection process involving voluntary application, multiple rounds of expert reviews, and final defense, this product was successfully selected as a "2025 Green Technology Innovation Case." The HCC40's innovatively optimized structural design and upgraded material application result in outstanding insulation performance and environmental adaptability, with its advancement and exemplary nature receiving authoritative recognition.
Technical Parameters
Rated Voltage: 1500V
Rated Current: 45A
Contact Resistance: ≤0.25mΩ
Protection Degree: IP65/IP68 (1m, 1h)
Protection Class: Class II
Temperature Range: -40℃ to +85℃
Electrical Connection: Crimping
chint xinhui
As a drafting unit for multiple national industry standards (e.g., PV junction boxes and connectors), Chint Xinhui consistently leverages technological innovation to lead industry development, focusing on cost reduction and efficiency improvement for power plants and new energy connection systems, while providing customized industrial connection solutions.
