As photovoltaic module power exceeds 700W and junction box current rises to 35A, a seemingly minor junction box has become critical to the safety and efficiency of power plants. How does Zhentai Xinhui's third-generation PV-HBE4x junction box, through innovative technology, improve quality, reduce costs, and lay a solid safety foundation for the photovoltaic industry under the backdrop of the "15th Five-Year Plan"?
With the "15th Five-Year Plan" elevating the development of new quality productive forces to a core strategic priority, the photovoltaic industry, as a mainstay of green energy, is at a critical juncture of transitioning from scale expansion to high-quality leaps. Power plant application scenarios are increasingly diverse and complex, ranging from deserts and Gobi to coastal rooftops and even offshore platforms, all demanding extreme reliability from the "nerve endings" of photovoltaic systems—the junction boxes. Zhentai Xinhui's third-generation improved junction box, PV-HBE4x, addresses these era-specific challenges with a series of robust technological innovations.
Zhejiang Zhentai Xinhui Photovoltaic Co., Ltd. is a specialized enterprise engaged in green power connectors, wire harnesses, and photovoltaic module junction boxes. As a participant in setting multiple national industry standards for photovoltaic junction boxes and connectors, Zhentai Xinhui always adheres to technological innovation to lead industry development, focusing on cost reduction and efficiency improvement for power plants and new energy connection systems, while providing customized green power connection solutions, including balcony photovoltaic storage connection schemes.
During the "15th Five-Year Plan" period, a critical phase for green transformation, photovoltaic bypass connection technology faces three major challenges.
The "15th Five-Year Plan" places the construction of a new power system at its core, with photovoltaic power plant applications expanding from conventional environments to extreme and complex areas such as deserts, coasts, and even offshore regions. This poses extreme challenges to the reliability of their "nerve endings"—the junction boxes.
The primary challenge is heat dissipation pressure. Traditional junction boxes are prone to hot spots or even thermal runaway due to insufficient heat dissipation. The second is connection stability: under stressors like vibration and temperature fluctuations, loose connection points can increase resistance, creating safety hazards. Finally, long-term operational costs: harsh environments require connection systems with high sealing and anti-aging capabilities to support stable operation over the entire 25-year lifecycle of power plants, reducing maintenance frequency and overall costs.
Zhentai Xinhui PV-HBE4x: Addressing Industry Needs with Three Major Technological Innovations
Confronting these challenges, the Zhentai Xinhui PV-HBE4x junction box achieves breakthrough innovations through three core technologies.
First, it adopts a conductive heat dissipation separation design, using low-cost specialized heat dissipation components to achieve efficient cooling. Diodes and busbars are directly electrically connected, significantly reducing loop resistance and contact resistance, lowering diode junction temperature from the source, reducing power consumption, and improving reliability. Second, an innovative anti-splash welding process for electromagnetic welding of busbars greatly enhances the consistency and reliability of busbar welding, while reducing solder usage, helping to solve the reliability issues of electromagnetic welding for busbars in the photovoltaic industry. Third, an innovative electrical connection process for diodes avoids thermal damage and mechanical damage, with no excessive mechanical processing damage to diodes, and no thermal impact from diode resistance welding; as the industry's first R6 diode junction box produced with a full-process non-destructive approach, it ensures diode reliability and consistency, providing more reliable safety protection for module hot spot bypass.
Empowering Industry Upgrade: From "Single-point Innovation" to "System Value"
Zhentai Xinhui's technological innovations transcend the product itself, translating into system value that drives the high-quality development of the photovoltaic industry. The PV-HBE4x's specialized heat dissipation components achieve efficient heat dissipation, reducing loop resistance and contact resistance, and lowering power consumption; the advanced anti-splash welding process significantly improves busbar welding, making it more reliable and economical.

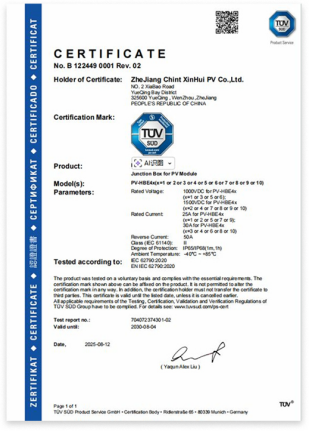

The PV-HBE4x has passed multiple reliability certifications such as TÜV Süd. Zhentai Xinhui, with practical actions, supports the "15th Five-Year Plan" requirements for intelligent and green development, laying a solid foundation for the safe, efficient, and long-term operation of the new power system.
